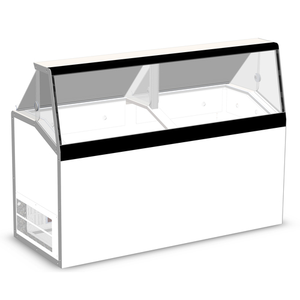

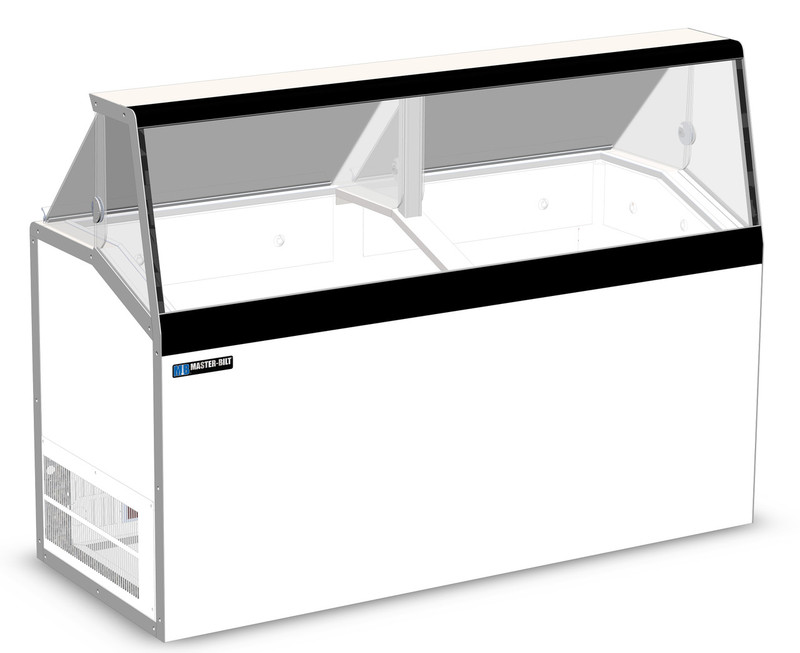

Master Bilt DD-66L 69.25"W Ice Cream Dipping/Display Cabinet
Shop all Master Bilt Ice Cream and Gelato Dipping Cabinets
- SKU:
- DD-66L
- MPN:
- DD-66L
$776.91 / month with Learn more
Usually ships in 2 - 3 Business Days
Free shipping
This product comes with warranty coverage. Warranty terms vary by product and part type. See full warranty details.
Commercial design services
Discover a whole new degree of kitchen customization with our proven idea-through-installation model. Learn more
Built for high-volume scoop stations, the Master Bilt DD-66L 69.25"W ice cream cabinet holds twelve 3-gallon tubs above and eight below, maintaining 5° to -5°F.
- R-290 refrigerant, 5/6 HP compressor
- Temperature range 5° to -5°F
- cULus and CSA certified, Made in USA
- 69.25" W curved glass display
- Stores (8) 3-gallon tubs below
- Holds (12) 3-gallon tubs on top
Weight545 LBS
Height50 (H)
Width69.25 (W)
Depth27.5 (D)
Exterior FinishGalvanized Steel
Horse Power5/6 HP
InteriorGalvanized Steel
Top Working Tub Capacity(12) 3 gal tubs
Tub Storage Capacity(8) 3 gal tubs
Voltage115v
ManufacturerMaster Bilt
Amps7.2
Phase1-Ph
Hertz60
Capacity (cu. ft)16 Cu. Ft.
Refrigerant TypeR-290
StyleCurved Glass
Dimensions27.5 69.25 50
| Weight | 545 LBS |
|---|---|
| Height | 50 (H) |
| Width | 69.25 (W) |
| Depth | 27.5 (D) |
| Exterior Finish | Galvanized Steel |
| Horse Power | 5/6 HP |
| Interior | Galvanized Steel |
| Top Working Tub Capacity | (12) 3 gal tubs |
| Tub Storage Capacity | (8) 3 gal tubs |
| Voltage | 115v |
| Manufacturer | Master Bilt |
| Amps | 7.2 |
| Phase | 1-Ph |
| Hertz | 60 |
| Capacity (cu. ft) | 16 Cu. Ft. |
| Refrigerant Type | R-290 |
| Style | Curved Glass |
| Dimensions | 27.5 69.25 50 |
