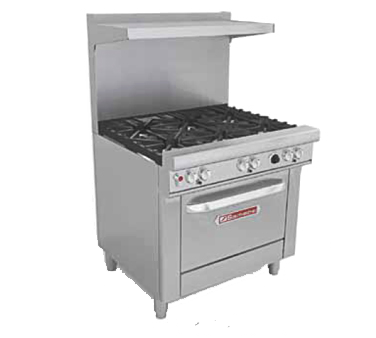

Southbend 4363D-2CR-NG 36" Natural Gas Ultimate Restaurant Range - 175,000 BTU
Shop all Southbend Commercial Gas Range
- SKU:
- 4363D-2CR-NG
- MPN:
- 4363D-2CR
Commercial design services
Discover a whole new degree of kitchen customization with our proven idea-through-installation model. Learn more
Southbend 4363D-2CR-NG 36" gas range delivers 175,000 BTU with star burners, a 24" charbroiler, and a standard oven. Stainless steel build, flue riser, adjustable legs, CSA & NSF certified.
- 70.9 Cu.Ft oven volume with spring door
- 22.5" flue riser with hi-shelf vent
- 6" adjustable legs for leveling
- 36" gas range with charbroiler efficiency
- Stainless steel front, sides, and shelf
- 175,000 BTU total cooking power
Weight660 LBS
Height59.5 (H)
Width36.5 (W)
Depth34 (D)
Base(1) standard oven
Cook Top37.00
Cubic Volume70.9 Cu.Ft
Door Opening15.50"
Exterior FinishStainless steel
Flue Riser22.5” Flue Riser Standard
Legs6" Adjustable Legs
No of Burners2
Number of Racks1
Oven Bottom13.00"
Oven DoorSpring assisted, counterweight door
Oven Interior (WidthxDepthxHeight)26.00"Wx26.50"Dx14.00"H
TopCharbroilers
Total BTU175,000 BTU
VentBackriser with hi-shelf
Voltage120
ManufacturerSouthbend
Amps5.9
Phase1
Hertz60
Oven TypeRestaurant Range
Control TypeManual
Power TypeNatural Gas
Dimensions48 58 44
| Weight | 660 LBS |
|---|---|
| Height | 59.5 (H) |
| Width | 36.5 (W) |
| Depth | 34 (D) |
| Base | (1) standard oven |
| Cook Top | 37.00 |
| Cubic Volume | 70.9 Cu.Ft |
| Door Opening | 15.50" |
| Exterior Finish | Stainless steel |
| Flue Riser | 22.5” Flue Riser Standard |
| Legs | 6" Adjustable Legs |
| No of Burners | 2 |
| Number of Racks | 1 |
| Oven Bottom | 13.00" |
| Oven Door | Spring assisted, counterweight door |
| Oven Interior (WidthxDepthxHeight) | 26.00"Wx26.50"Dx14.00"H |
| Top | Charbroilers |
| Total BTU | 175,000 BTU |
| Vent | Backriser with hi-shelf |
| Voltage | 120 |
| Manufacturer | Southbend |
| Amps | 5.9 |
| Phase | 1 |
| Hertz | 60 |
| Oven Type | Restaurant Range |
| Control Type | Manual |
| Power Type | Natural Gas |
| Dimensions | 48 58 44 |
