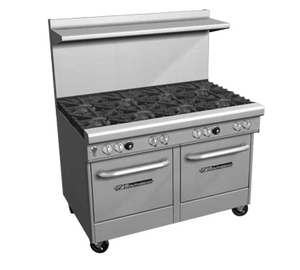

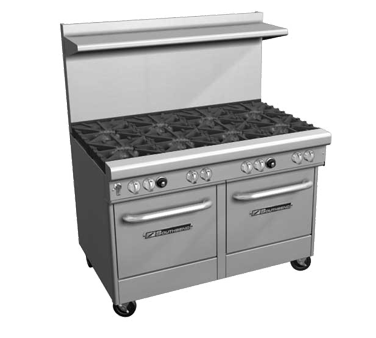

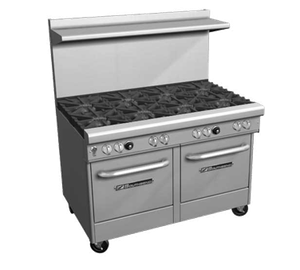

Southbend 4483EE-3GR-LP 32" Liquid Propane Ultimate Restaurant Range - 220,000 BTU
Shop all Southbend Commercial Gas Range
- SKU:
- 4483EE-3GR-LP
- MPN:
- 4483EE-3GR
Commercial design services
Discover a whole new degree of kitchen customization with our proven idea-through-installation model. Learn more
Built for high-volume kitchens, the Southbend 4483EE-3GR-LP delivers 220,000 BTU with two burners and a 36" left griddle. Stainless steel construction and 6" adjustable legs ensure durable, serviceable performance.
- 6" adjustable legs for leveling
- Manual controls with spring-assisted door
- Qualifies for Service First Program support
- 220,000 BTU cooking power
- Left 36" griddle plus dual burners
- Stainless steel front, sides, shelf
Weight735 LBS
Height59.5 (H)
Width48.63 (W)
Depth34 (D)
Base(2) standard / space saver ovens
Cook Top37
Cubic Volume70.9 Cu.Ft
Door Opening15.50"
Exterior FinishStainless steel
Flue Riser22.5 Flue Riser Standard
Legs6" Adjustable Legs
No of Burners2
Oven Bottom13.00"
Oven DoorSpring assisted, counterweight door
Oven Interior (WidthxDepthxHeight)19.50"Wx26.50"Dx14.00"H
Plate Thickness.500" = 1/2"
TopBurners with Left Griddle
Total BTU220,000 BTU
VentBackriser with hi-shelf
Voltage120
ManufacturerSouthbend
Amps5.9
Phase1
Hertz60
Oven TypeRestaurant Range
Power TypeLiquid Propane
Control TypeManual
Dimensions48 69 74
| Weight | 735 LBS |
|---|---|
| Height | 59.5 (H) |
| Width | 48.63 (W) |
| Depth | 34 (D) |
| Base | (2) standard / space saver ovens |
| Cook Top | 37 |
| Cubic Volume | 70.9 Cu.Ft |
| Door Opening | 15.50" |
| Exterior Finish | Stainless steel |
| Flue Riser | 22.5 Flue Riser Standard |
| Legs | 6" Adjustable Legs |
| No of Burners | 2 |
| Oven Bottom | 13.00" |
| Oven Door | Spring assisted, counterweight door |
| Oven Interior (WidthxDepthxHeight) | 19.50"Wx26.50"Dx14.00"H |
| Plate Thickness | .500" = 1/2" |
| Top | Burners with Left Griddle |
| Total BTU | 220,000 BTU |
| Vent | Backriser with hi-shelf |
| Voltage | 120 |
| Manufacturer | Southbend |
| Amps | 5.9 |
| Phase | 1 |
| Hertz | 60 |
| Oven Type | Restaurant Range |
| Power Type | Liquid Propane |
| Control Type | Manual |
| Dimensions | 48 69 74 |
