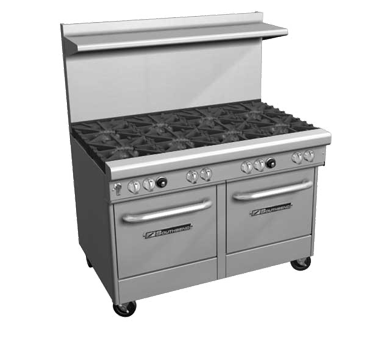

Southbend 4484DC-2CR-LP 48" Liquid Propane Ultimate Restaurant Range - 241,000 BTU
Shop all Southbend Commercial Gas Range
- SKU:
- 4484DC-2CR-LP
- MPN:
- 4484DC-2CR
Commercial design services
Discover a whole new degree of kitchen customization with our proven idea-through-installation model. Learn more
Southbend 4484DC-2CR-LP features a 48" charbroiler, two front star/sauté burners, two rear non-clog burners, 241,000 BTU, oven with spark ignition, cabinet base, stainless steel, flue riser, CSA, NSF.
- Spring-assisted oven door with one rack
- 22.5" flue riser with hi-shelf included
- 6" adjustable legs, CSA and NSF certified
- 241,000 BTU commercial cooking capacity
- Charbroiler plus four-burner cooktop combo
- 48" stainless steel freestanding range
Weight735 LBS
Height59.5 (H)
Width48.63 (W)
Depth34 (D)
Base(1) Standard Oven, (1) Cabinet
Cook Top37.00
Cubic Volume70.9 Cu.Ft
Door Opening15.50"
Exterior FinishStainless steel
Flue Riser22.5” Flue Riser Standard
Legs6" Adjustable Legs
No of Burners4
Number of Racks1
Oven Bottom13.00"
Oven DoorSpring assisted, counterweight door
Oven Interior (WidthxDepthxHeight)26.00"Wx26.50"Dx14.00"H
TopCharbroilers
Total BTU241,000 BTU
VentBackriser with hi-shelf
Voltage120
ManufacturerSouthbend
Amps5.9
Phase1
Hertz60
Oven TypeUltimate Restaurant Range
Control TypeManual
Power TypeLiquid Propane
Dimensions48 69 74
| Weight | 735 LBS |
|---|---|
| Height | 59.5 (H) |
| Width | 48.63 (W) |
| Depth | 34 (D) |
| Base | (1) Standard Oven, (1) Cabinet |
| Cook Top | 37.00 |
| Cubic Volume | 70.9 Cu.Ft |
| Door Opening | 15.50" |
| Exterior Finish | Stainless steel |
| Flue Riser | 22.5” Flue Riser Standard |
| Legs | 6" Adjustable Legs |
| No of Burners | 4 |
| Number of Racks | 1 |
| Oven Bottom | 13.00" |
| Oven Door | Spring assisted, counterweight door |
| Oven Interior (WidthxDepthxHeight) | 26.00"Wx26.50"Dx14.00"H |
| Top | Charbroilers |
| Total BTU | 241,000 BTU |
| Vent | Backriser with hi-shelf |
| Voltage | 120 |
| Manufacturer | Southbend |
| Amps | 5.9 |
| Phase | 1 |
| Hertz | 60 |
| Oven Type | Ultimate Restaurant Range |
| Control Type | Manual |
| Power Type | Liquid Propane |
| Dimensions | 48 69 74 |
