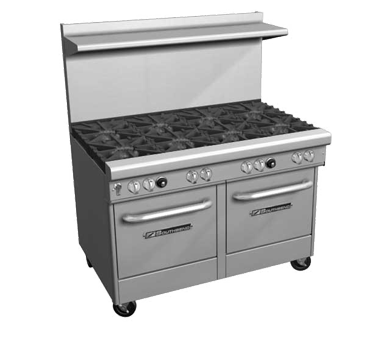

Southbend 4484DC-LP 48" Liquid Propane Ultimate Restaurant Range - 309,000 BTU
Shop all Southbend Commercial Gas Range
- SKU:
- 4484DC-LP
- MPN:
- 4484DC
This product comes with warranty coverage. Warranty terms vary by product and part type. See full warranty details.
Commercial design services
Discover a whole new degree of kitchen customization with our proven idea-through-installation model. Learn more
Equip kitchens for high-volume production with the Southbend 4484DC-LP 48" propane range, delivering 309,000 BTU across eight burners and an oven. Stainless steel, 22.5" flue riser, adjustable legs, CSA and NSF certified for commercial use.
- 70.9 Cu.Ft oven with spring door
- 22.5" flue riser with hi-shelf
- CSA, NSF certified
- 309,000 BTU cooking power
- Stainless steel front, sides, shelf
- Eight high-output burners
Weight735 LBS
Height59.5 (H)
Width48.63 (W)
Depth34 (D)
Base(1) Standard Oven, (1) Cabinet
Cook Top37
Cubic Volume70.9 Cu.Ft
Door Opening15.50"
Exterior FinishStainless steel
Flue Riser22.5 Flue Riser Standard
Legs6" Adjustable Legs
No of Burners8
Number of Racks1
Oven Bottom13.00"
Oven DoorSpring assisted, counterweight door
Oven Interior (WidthxDepthxHeight)26.00"Wx26.50"Dx14.00"H
TopBurners
Total BTU309,000 BTU
VentBackriser with hi-shelf
Voltage120
ManufacturerSouthbend
Amps5.9
Phase1
Hertz60
Oven TypeUltimate Restaurant Range
Control TypeManual
Power TypeLiquid Propane
Dimensions48 69 74
| Weight | 735 LBS |
|---|---|
| Height | 59.5 (H) |
| Width | 48.63 (W) |
| Depth | 34 (D) |
| Base | (1) Standard Oven, (1) Cabinet |
| Cook Top | 37 |
| Cubic Volume | 70.9 Cu.Ft |
| Door Opening | 15.50" |
| Exterior Finish | Stainless steel |
| Flue Riser | 22.5 Flue Riser Standard |
| Legs | 6" Adjustable Legs |
| No of Burners | 8 |
| Number of Racks | 1 |
| Oven Bottom | 13.00" |
| Oven Door | Spring assisted, counterweight door |
| Oven Interior (WidthxDepthxHeight) | 26.00"Wx26.50"Dx14.00"H |
| Top | Burners |
| Total BTU | 309,000 BTU |
| Vent | Backriser with hi-shelf |
| Voltage | 120 |
| Manufacturer | Southbend |
| Amps | 5.9 |
| Phase | 1 |
| Hertz | 60 |
| Oven Type | Ultimate Restaurant Range |
| Control Type | Manual |
| Power Type | Liquid Propane |
| Dimensions | 48 69 74 |
