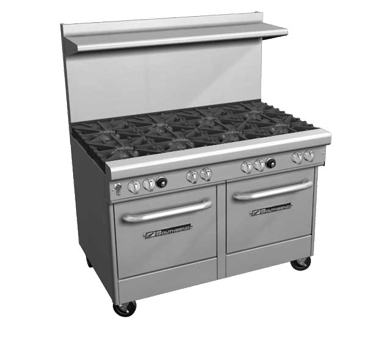

Southbend 4484EE-6R-LP 48" Liquid Propane Ultimate Restaurant Range - 335,000 BTU
Shop all Southbend Commercial Gas Range
- SKU:
- 4484EE-6R-LP
- MPN:
- 4484EE-6R
Commercial design services
Discover a whole new degree of kitchen customization with our proven idea-through-installation model. Learn more
Southbend's 4484EE-6R-LP 48" liquid propane range offers 335,000 BTU from six burners and two ovens. It features stainless steel, a 22.5" flue riser, and 6" adjustable legs.
- 22.5" flue riser with hi-shelf for venting
- Stainless steel front, sides, shelf for durability
- 48" liquid propane range, 335,000 BTU total
- Two space-saver ovens with battery ignition
- Six heavy-duty burners with varied heat
Weight735 LBS
Height59.5 (H)
Width48.63 (W)
Depth34 (D)
Base(2) standard / space saver ovens
Cook Top37.00
Cubic Volume70.9 Cu.Ft
Door Opening15.50"
Exterior FinishStainless steel
Flue Riser22.5 Flue Riser Standard
Legs6" Adjustable Legs
No of Burners6
Number of Racks1
Oven Bottom13.00"
Oven DoorSpring assisted, counterweight door
Oven Interior (WidthxDepthxHeight)19.50"Wx26.50"Dx14.00"H
TopBurners
Total BTU335,000 BTU
VentBackriser with hi-shelf
Voltage120
ManufacturerSouthbend
Amps5.9
Phase1
Hertz60
Oven TypePlatinum Heavy Duty Range
Control TypeManual
Power TypeLiquid Propane
Dimensions48 69 74
| Weight | 735 LBS |
|---|---|
| Height | 59.5 (H) |
| Width | 48.63 (W) |
| Depth | 34 (D) |
| Base | (2) standard / space saver ovens |
| Cook Top | 37.00 |
| Cubic Volume | 70.9 Cu.Ft |
| Door Opening | 15.50" |
| Exterior Finish | Stainless steel |
| Flue Riser | 22.5 Flue Riser Standard |
| Legs | 6" Adjustable Legs |
| No of Burners | 6 |
| Number of Racks | 1 |
| Oven Bottom | 13.00" |
| Oven Door | Spring assisted, counterweight door |
| Oven Interior (WidthxDepthxHeight) | 19.50"Wx26.50"Dx14.00"H |
| Top | Burners |
| Total BTU | 335,000 BTU |
| Vent | Backriser with hi-shelf |
| Voltage | 120 |
| Manufacturer | Southbend |
| Amps | 5.9 |
| Phase | 1 |
| Hertz | 60 |
| Oven Type | Platinum Heavy Duty Range |
| Control Type | Manual |
| Power Type | Liquid Propane |
| Dimensions | 48 69 74 |
