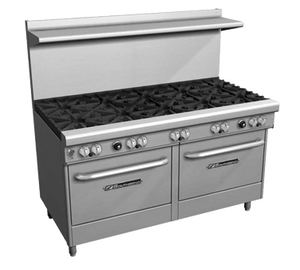

Southbend 4601DC-4GL-LP 60" Liquid Propane Ultimate Restaurant Range - 191,000 BTU
Shop all Southbend Commercial Gas Range
- SKU:
- 4601DC-4GL-LP
- MPN:
- 4601DC-4GL
Commercial design services
Discover a whole new degree of kitchen customization with our proven idea-through-installation model. Learn more
Southbend 4601DC-4GL-LP offers a 60" range with 2 burners, 48" griddle, standard oven, cabinet base, stainless steel build, 6" legs, 22.5" riser, and 191,000 BTU for high-volume use.
- 22.5" flue riser, hi-shelf
- 1 oven, 1 cabinet with rack
- 6" adjustable legs
- 191,000 BTU cooking power
- Stainless steel front, sides, shelf
- 48" griddle, 2 burners
Weight1075 LBS
Height59.5 (H)
Width60.75 (W)
Depth34 (D)
Base(1) Standard Oven, (1) Cabinet
Cook Top37.00"
Cubic Volume132.3 Cu.Ft
Exterior FinishStainless steel
Flue Riser22.5 Flue Riser Standard
Legs6" Adjustable Legs
No of Burners2
Oven Bottom13.00"
Oven DoorSpring Assisted, Counterweight Door
Plate Thickness.500" = 1/2"
TopBurners with Left Griddle
Total BTU191,000 BTU
VentBackriser with hi-shelf
ManufacturerSouthbend
Oven TypePlatinum Heavy Duty Range
Power TypeLiquid Propane
Control TypeManual
Dimensions48 69 74
| Weight | 1075 LBS |
|---|---|
| Height | 59.5 (H) |
| Width | 60.75 (W) |
| Depth | 34 (D) |
| Base | (1) Standard Oven, (1) Cabinet |
| Cook Top | 37.00" |
| Cubic Volume | 132.3 Cu.Ft |
| Exterior Finish | Stainless steel |
| Flue Riser | 22.5 Flue Riser Standard |
| Legs | 6" Adjustable Legs |
| No of Burners | 2 |
| Oven Bottom | 13.00" |
| Oven Door | Spring Assisted, Counterweight Door |
| Plate Thickness | .500" = 1/2" |
| Top | Burners with Left Griddle |
| Total BTU | 191,000 BTU |
| Vent | Backriser with hi-shelf |
| Manufacturer | Southbend |
| Oven Type | Platinum Heavy Duty Range |
| Power Type | Liquid Propane |
| Control Type | Manual |
| Dimensions | 48 69 74 |
