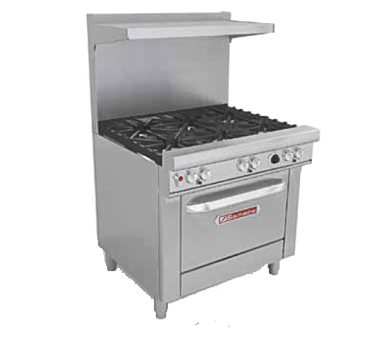

Southbend 436D-3C-LP 36" Liquid Propane Ultimate Restaurant Range - 141,000 BTU
Shop all Southbend Commercial Gas Range
- SKU:
- 436D-3C-LP
- MPN:
- 436D-3C
Commercial design services
Discover a whole new degree of kitchen customization with our proven idea-through-installation model. Learn more
Southbend 436D-3C-LP is a 36" liquid propane range with a 36" charbroiler, standard oven (70.9 Cu.Ft), 141,000 BTU, CSA/NSF certified, 22.5" flue riser, and 6" adjustable legs.
- 70.9 Cu.Ft oven with spring door
- 22.5" flue riser with hi-shelf
- 6" adjustable legs for leveling
- 141,000 BTU for high-volume cooking
- Stainless steel front, sides, shelf
- 36" charbroiler with 2 burners
Weight660 LBS
Height59.5 (H)
Width36.5 (W)
Depth34 (D)
Base(1) standard oven
Cook Top37.00
Cubic Volume70.9 Cu.Ft
Door Opening15.50"
Exterior FinishStainless steel
Flue Riser22.5 Flue Riser Standard
Legs6" Adjustable Legs
No of Burners2
Number of Racks1
Oven Bottom13.00"
Oven DoorSpring assisted, counterweight door
Oven Interior (WidthxDepthxHeight)26.00"Wx26.50"Dx14.00"H
TopCharbroilers
Total BTU141,000 BTU
VentBackriser with hi-shelf
Voltage120
ManufacturerSouthbend
Amps5.9
Phase1
Hertz60
Oven TypePlatinum Heavy Duty Range
Control TypeManual
Power TypeLiquid Propane
Dimensions48 58 44
| Weight | 660 LBS |
|---|---|
| Height | 59.5 (H) |
| Width | 36.5 (W) |
| Depth | 34 (D) |
| Base | (1) standard oven |
| Cook Top | 37.00 |
| Cubic Volume | 70.9 Cu.Ft |
| Door Opening | 15.50" |
| Exterior Finish | Stainless steel |
| Flue Riser | 22.5 Flue Riser Standard |
| Legs | 6" Adjustable Legs |
| No of Burners | 2 |
| Number of Racks | 1 |
| Oven Bottom | 13.00" |
| Oven Door | Spring assisted, counterweight door |
| Oven Interior (WidthxDepthxHeight) | 26.00"Wx26.50"Dx14.00"H |
| Top | Charbroilers |
| Total BTU | 141,000 BTU |
| Vent | Backriser with hi-shelf |
| Voltage | 120 |
| Manufacturer | Southbend |
| Amps | 5.9 |
| Phase | 1 |
| Hertz | 60 |
| Oven Type | Platinum Heavy Duty Range |
| Control Type | Manual |
| Power Type | Liquid Propane |
| Dimensions | 48 58 44 |
