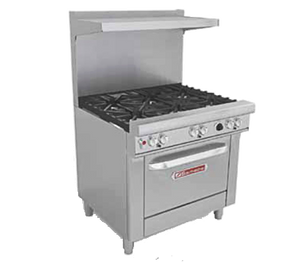

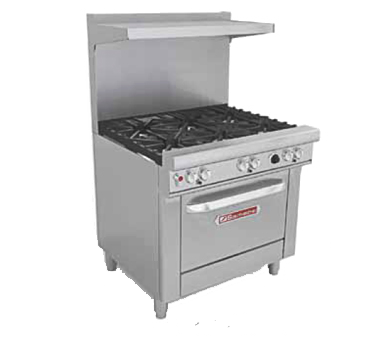

Southbend 436D-3C-NG 32" Natural Gas Ultimate Restaurant Range - 141,000 BTU
Shop all Southbend Commercial Gas Range
- SKU:
- 436D-3C-NG
- MPN:
- 436D-3C
Commercial design services
Discover a whole new degree of kitchen customization with our proven idea-through-installation model. Learn more
Southbend 436D-3C-NG restaurant range has a 36" charbroiler, stainless steel build, and 141,000 BTU output for heavy cooking. It features a standard oven with a spring-assisted door and a 22.5” flue riser.
- 6" adjustable legs for leveling
- 22.5" flue riser with hi-shelf
- CSA and NSF certified for commercial use
- 141,000 BTU output for high-volume cooking
- Stainless steel exterior for sanitation
- 36.5" width fits standard kitchens
Weight660 LBS
Height59.5 (H)
Width36.5 (W)
Depth34 (D)
Base(1) standard oven
Cook Top37.00
Cubic Volume70.9 Cu.Ft
Door Opening15.50"
Exterior FinishStainless steel
Flue Riser22.5” Flue Riser Standard
Legs6" Adjustable Legs
No of Burners2
Number of Racks1
Oven Bottom13.00"
Oven DoorSpring assisted, counterweight door
Oven Interior (WidthxDepthxHeight)26.00"Wx26.50"Dx14.00"H
TopCharbroilers
Total BTU141,000 BTU
VentBackriser with hi-shelf
Voltage120
ManufacturerSouthbend
Amps5.9
Phase1
Hertz60
Oven TypeRestaurant Range
Control TypeManual
Power TypeNatural Gas
Dimensions48 58 44
| Weight | 660 LBS |
|---|---|
| Height | 59.5 (H) |
| Width | 36.5 (W) |
| Depth | 34 (D) |
| Base | (1) standard oven |
| Cook Top | 37.00 |
| Cubic Volume | 70.9 Cu.Ft |
| Door Opening | 15.50" |
| Exterior Finish | Stainless steel |
| Flue Riser | 22.5” Flue Riser Standard |
| Legs | 6" Adjustable Legs |
| No of Burners | 2 |
| Number of Racks | 1 |
| Oven Bottom | 13.00" |
| Oven Door | Spring assisted, counterweight door |
| Oven Interior (WidthxDepthxHeight) | 26.00"Wx26.50"Dx14.00"H |
| Top | Charbroilers |
| Total BTU | 141,000 BTU |
| Vent | Backriser with hi-shelf |
| Voltage | 120 |
| Manufacturer | Southbend |
| Amps | 5.9 |
| Phase | 1 |
| Hertz | 60 |
| Oven Type | Restaurant Range |
| Control Type | Manual |
| Power Type | Natural Gas |
| Dimensions | 48 58 44 |
