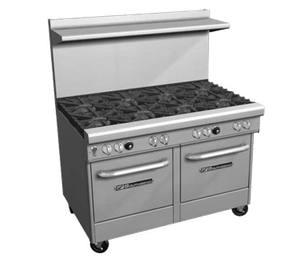

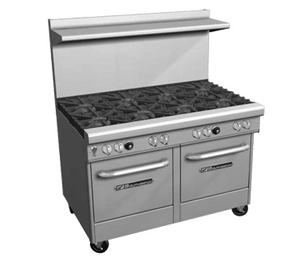

Southbend 4484AC-2CR-LP 60.75" Liquid Propane Ultimate Restaurant Range - 228,000 BTU
Shop all Southbend Commercial Gas Range
- SKU:
- 4484AC-2CR-LP
- MPN:
- 4484AC-2CR
Commercial design services
Discover a whole new degree of kitchen customization with our proven idea-through-installation model. Learn more
Southbend 4484AC-2CR-LP 60.75" liquid propane restaurant range delivers 228,000 BTU with a four-burner cooktop, a 24" charbroiler, and a convection oven. Stainless steel construction and CSA/NSF certification support heavy commercial use.
- Includes convection oven and cabinet base
- 22.5" flue riser with hi-shelf for venting
- 6" adjustable legs for leveling
- 228,000 BTU commercial heat output
- 48.63" width fits standard kitchen lines
- Stainless steel exterior for easy cleaning
Weight735 LBS
Height59.5 (H)
Width48.63 (W)
Depth44.5 (D)
Base(1) convection oven, (1) cabinet
Cook Top37
Cubic Volume70.9 Cu.Ft
Door Opening15.50"
Exterior FinishStainless steel
Flue Riser22.5 Flue Riser Standard
Legs6" Adjustable Legs
No of Burners4
Number of Racks3
Oven Bottom13.00"
Oven DoorSpring assisted, counterweight door
Oven Interior (WidthxDepthxHeight)26.00"Wx24.00"Dx14.00"H
TopCharbroilers
Total BTU228,000 BTU
VentBackriser with hi-shelf
Voltage120
ManufacturerSouthbend
Amps5.9
Phase1
Hertz60
Oven TypeUltimate Restaurant Range
Control TypeManual
Power TypeLiquid Propane
Dimensions48 69 74
| Weight | 735 LBS |
|---|---|
| Height | 59.5 (H) |
| Width | 48.63 (W) |
| Depth | 44.5 (D) |
| Base | (1) convection oven, (1) cabinet |
| Cook Top | 37 |
| Cubic Volume | 70.9 Cu.Ft |
| Door Opening | 15.50" |
| Exterior Finish | Stainless steel |
| Flue Riser | 22.5 Flue Riser Standard |
| Legs | 6" Adjustable Legs |
| No of Burners | 4 |
| Number of Racks | 3 |
| Oven Bottom | 13.00" |
| Oven Door | Spring assisted, counterweight door |
| Oven Interior (WidthxDepthxHeight) | 26.00"Wx24.00"Dx14.00"H |
| Top | Charbroilers |
| Total BTU | 228,000 BTU |
| Vent | Backriser with hi-shelf |
| Voltage | 120 |
| Manufacturer | Southbend |
| Amps | 5.9 |
| Phase | 1 |
| Hertz | 60 |
| Oven Type | Ultimate Restaurant Range |
| Control Type | Manual |
| Power Type | Liquid Propane |
| Dimensions | 48 69 74 |
