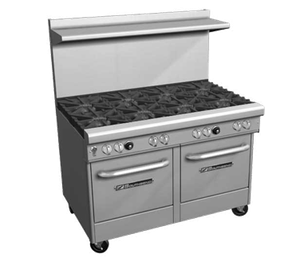

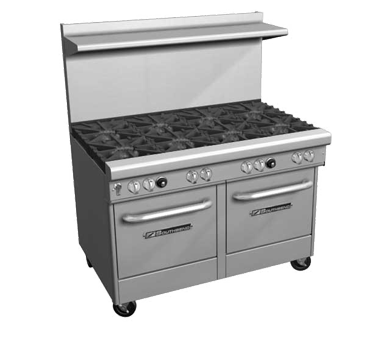

Southbend 4484AC-2CR-NG 48.63" Natural Gas Ultimate Restaurant Range - 175,000 BTU
Shop all Southbend Commercial Gas Range
- SKU:
- 4484AC-2CR-NG
- MPN:
- 4484AC-2CR
Commercial design services
Discover a whole new degree of kitchen customization with our proven idea-through-installation model. Learn more
Southbend 4484AC-2CR-NG 48.63" natural gas range delivers 175,000 BTU with four burners, a 36" griddle, convection oven, spring door, three racks, flue riser, and adjustable legs.
- 22.5" flue riser with hi-shelf
- 70.9 Cu.Ft convection oven with 3 racks
- 6" adjustable legs, spring-assisted oven door
- 175,000 BTU for high-volume kitchens
- 36" griddle + 4 burners for versatility
- 48.63" stainless steel worktop and sides
Weight735 LBS
Height59.5 (H)
Width48.63 (W)
Depth44.5 (D)
Base(1) convection oven, (1) cabinet
Cook Top37.00
Cubic Volume70.9 Cu.Ft
Door Opening15.50"
Exterior FinishStainless steel
Flue Riser22.5 Flue Riser Standard
Legs6" Adjustable Legs
No of Burners4
Number of Racks3
Oven Bottom13.00"
Oven DoorSpring assisted, counterweight door
Oven Interior (WidthxDepthxHeight)26.00"Wx24.00"Dx14.00"H
TopBurners with Left Griddle
Total BTU175,000 BTU
VentBackriser with hi-shelf
Voltage120
ManufacturerSouthbend
Amps5.9
Phase1
Hertz60
Oven TypeRestaurant Range
Control TypeManual
Power TypeNatural Gas
Dimensions48 69 74
| Weight | 735 LBS |
|---|---|
| Height | 59.5 (H) |
| Width | 48.63 (W) |
| Depth | 44.5 (D) |
| Base | (1) convection oven, (1) cabinet |
| Cook Top | 37.00 |
| Cubic Volume | 70.9 Cu.Ft |
| Door Opening | 15.50" |
| Exterior Finish | Stainless steel |
| Flue Riser | 22.5 Flue Riser Standard |
| Legs | 6" Adjustable Legs |
| No of Burners | 4 |
| Number of Racks | 3 |
| Oven Bottom | 13.00" |
| Oven Door | Spring assisted, counterweight door |
| Oven Interior (WidthxDepthxHeight) | 26.00"Wx24.00"Dx14.00"H |
| Top | Burners with Left Griddle |
| Total BTU | 175,000 BTU |
| Vent | Backriser with hi-shelf |
| Voltage | 120 |
| Manufacturer | Southbend |
| Amps | 5.9 |
| Phase | 1 |
| Hertz | 60 |
| Oven Type | Restaurant Range |
| Control Type | Manual |
| Power Type | Natural Gas |
| Dimensions | 48 69 74 |
